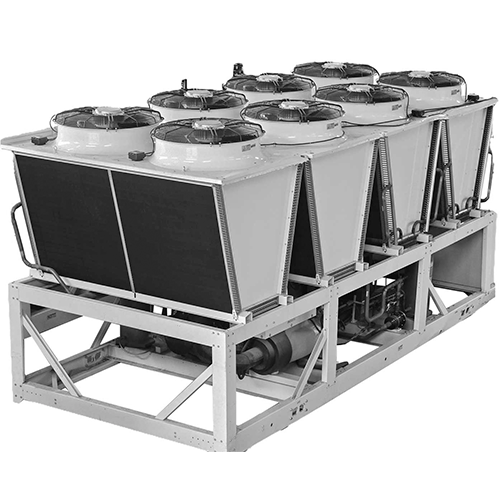

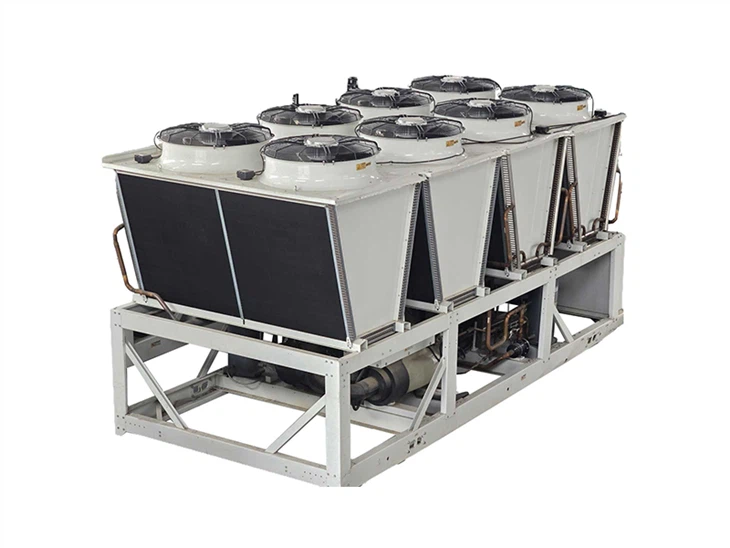

Trane RTAG Chiller
Trane RTAG Chiller
Trane RTAG Chiller
Trane RTAG Chiller

Tran RTag Chiller

Trene RTag Chillers juda yuqori - Samarali va ishlab chiqarish bo'yicha qo'llanmalar, energiya samaradorligi, ekologik barqarorlik va operatsion ishonchlilikning ajoyib balansini taqdim etadigan samarali sovutish echimi.

So'rov yuborish

Yuklab oling

Ta'rif

Xususiyatlari

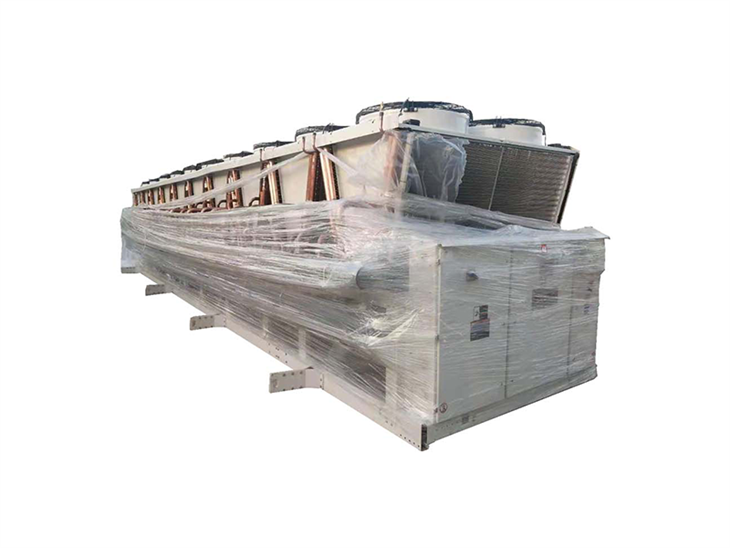

Kemada jo'natishga tayyor

1. Energiya samaradorligi nisbati:

{{0} - yuqori darajadagi - yuqori - yuqori darajadagi - yuqori darajadagi - yuqori martabali kompressorlar.

{- Ushbu yuqori samaradorlik bilan foydalanuvchilar katta sovutish talablari uchun - narxini oshirish uchun energiya sarfini va quyi kommunal to'lovlarni kamaytirishini kutishlari mumkin.

2.Virmentalentale Sock-ni qo'llab-quvvatlash:

- RTAG seriyasi uchburch vidali chiller an'anaviy sovutgichlar bilan taqqoslaganda ekologik jihatdan qulaylikdagi variantdan foydalanadi.

3. Sintelly boshqaruv tizimi:

- RTAG Chillers UC800 Touch Ekran nazorati bilan jihozlangan.

- Yaxshi aniqlik uchun suv haroratini tiklash.

- Tizim samaradorligini optimallashtirish uchun birlik yumshoq yuklash.

- Kengaytirilgan faoliyat uchun asosiy yukni boshqarish va aniq yukni boshqarish nazorati.

- Masofa va foydalanish qulayligini ta'minlaydigan masofadan boshqarish imkoniyatlari.

- Ushbu aqlli boshqaruv tizimi yaxshi - sozlangan, sezgir operatsiya, Jihoz o'zgaruvchan sharoitlarda optimal ravishda bajarilishini ta'minlaydigan.

4. Shovqin texnologiyasi:

- RTAG seriyasi turli xil shovqin talablarini qondirish uchun to'rtta shovqin variantini taklif qiladi:

- standart

- yarim - past shovqin

- past shovqin

- past shovqin va tungi rejim

- shovqin o'lchamlari Ushbu shovqin valyutalar shovqin darajasi, masalan, ofis binolari, kasalxonalar va turar-joy sohalarida boshqarilishi kerak.

TD7 moslashuv tizimi:

- Birlik TD7 dinamik rangli displeyi va Symlioo800 kontrika-ni boshqarish va tizimni monitoring qilish uchun intuitriv grafik interfeysni o'z ichiga oladi.

- TD7 soddalashtirilgan boshqarish va vizualizatsiya qilish imkoniyatini beradi, operatorlar tizimning ishlashini tezda baholash va kerak bo'lganda tuzatishlarni amalga oshirishga imkon beradi.

- Adacive Control Control Moneyction tizimning ishlashini optimallashtiradi, keng qamrovli sharoitlarda samarali va ishonchli ishlashni ta'minlaydi.

Model	Tranli rtag
Sovutish qobiliyati	Texnik ma'lumotlar jadvalida aniq parametrlar mavjud.
Og'irligi va hajmi	Ma'lumot va vazn tafsilotlarini ma'lumotlar uzumida topish mumkin.
Quvvatlantirish manbai	380V / 50hz
Sovutgich turi	R-134A
Ekran	Mecom7 va Symbioo800 nazoratchilari
Politsiyachi	Taxminan 3.2 atrofida

Ariza

Ritg suv - Sovutilgan trenli chillerlar uchun juda mos keladi:

Tijorat binolari

Savdo markazlari, ofis binolari

Sanoat ob'ektlari

Ishlab chiqarish zavodlari, kimyoviy o'simliklar, sovuq saqlash

Tibbiyot muassasalari

Kasalxonalar, laboratoriyalar

Ma'lumot markazlari

Server xonalari, bulutli hisoblash markazlari

parametr

Yuqori - samaradorlikni nominal sovutish samaradorligi parametrlari jadvali
Model		Rtag - H	100	125	145	155	170	190	205	225	255	285	310	340	375	400	440
Muzlamoq		Kvant	341	429	496	534	578	635	685	774	878	993	1098	1155	1289	1384	1540
Muzlamoq		Tonna	97	122	141	152	164	181	195	220	250	282	312	328	367	393	438
Sig'im		Kvant	100	123	145	158	172	184	205	230	258	290	319	346	377	423	474
Muzlamoq		R134a
Quvvatlantirish manbai		380v150hz / 3FF
Kompressor	Tur	Gorizontal semen vintli kompressor
	Qisqichbum	Wye - delta yopiq o'tish starteri
	Aylanma narsa		1	2	2	2	2	2	2	2	2	2	2	2	2	2	2
	Minut		30%	15%	15%	15%	15%	15%	15%	15%	10%	7.50%	7.50%	7.50%	7.50%	7.50%	7.50%
Evakator	Tur	Shell va trubasi (chil)
	Reyting oqimi	I/S	16.3	20.4	23.6	25.4	27.5	30.3	32.6	36.9	41.8	47.3	52.3	55	61.4	65.9	73.4
	Reyting WPD	kpa	42.5	38.7	51.5	50.7	39.2	47.1	42.6	44.4	49.1	50	48.7	53.7	52.1	49.4	40.4
	naycha hajmi	mm	DN100	Dn125	Dn125	Dn125	Dn150	Dn150	Dn150	Dn150	Dn150	Dn150	Dn150	Dn150	Dn200	Dn200	Dn200
Kondensator	Fan turi		Eksenel oqimi
	Miqdori	har bir	6	8	8	8	8	10	10	12	14	14	16	16	18	18	20
	kuch	Kw / har bir	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.8	1.8	1.8	1.8	1.8	1.8
	Fan tezligi	Rpm	950	950	950	950	950	950	950	950	950	970	970	970	970	970	970
	Bitta fan havo oqimi	m²/h	17,982	17,982	17,982	17,982	17,982	17,982	17,982	17982	17982	20000	20000	20000	20000	20000	20000
Maks rla		A	269	319	369	405	441	489	528
Boshlang'ich {{0}		A	406	371	413	513	543	576	609
Muzlamoq ayblamoq	Ckt 1	kg	94	80	76	76	76	81	82	98	140	140	158	174	148	148	183
Muzlamoq ayblamoq	Ckt 2	kg	Nod	62	76	76	76	81	82	98	69	69	75	75	148	148	183
O'lchov	Uzunligi	mm	3,840	5020	5020	5020	5020	6200	6200	7380	8995	8995	10130	10130	11310	11310	11810
	Kenglik	mm	2245	2245	2501	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245
	Balandlik	mm	2501	2373	4130	2501	2501	2501	2501	2501	2501	2480	2480	2480	2480	2480	2480
Yuk tashish og'irligi		kg	2805	5614	4364	4174	4341	4699	4798	5354	7121	7341	8028	8044	9212	9362	10197
Operatsion og'irlik		kg	2960	4046	4364	4421	4602	4971	5085	5473	7227	7461	8165	8181	9363	9529	10403
Izohlar: 1. Sovutish shartlari: Suv harorati 12 daraja C / 7 darajasi, atrof-muhit harorati 35 daraja; Foul koeffitsienti 0,018m. Displey / KV, 85-2250000 evaporatator 2 jarayoni, 255ton va undan yuqori mashina bug'lanishi 1 jarayondir; 2. Ultra - pastcha shovqin, keng halqa harorati yoki past ring harorati pastligi, efirda EC vosita ishlatiladi; 3 4. Tantanning mahsulotlari doimiy ravishda takomillashtirilib, yangilanadi. Agar yuqoridagi jadvalda ma'lumotlar bo'lsa, biz sizni alohida-alohida xabardor qilmaymiz. Iltimos bizni kechiring.

Model		Rtag - x	85	100	125	145	155	170	190	205	225	255	285	310	340	375	400	410	440
Sig'im		Kvant	294.1	354	444	514	554	600	652	709	791	897	1029	1115	1182	1314	1411	1455	1576
Sig'im		Tonna	83.6	101	126	146	157	171	171	202	225	255	293	317	336	374	401	414	448
Sig'im		Kvant	80.5	98	118	138	150	162	162	196	221	249	277	307	325	368	411	399	449
Muzlamoq		R134a
Quvvatlantirish manbai		380v150hz / 3FF
Kompressor	Tur	Gorizontal semen vintli kompressor
	Boshpana	Wye - delta yopiq o'tish starteri
	Aylanma narsa		1	1	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
	Minut		30%	30%	15%	15%	15%	15%	15%	15%	15%	10.00%	10.00%	10.00%	10.00%	8.00%	8.00%	8.00%	8.00%
Evakator	Tur	Shell va trubasi (chil)
	Reyting oqimi	I/S	14	16.9	21.2	24.5	26.4	28.6	31.1	33.8	37.7	42.7	49	53.1	56.3	62.6	67.2	69.3	75.1
	Reyting WPD	kpa	36.6	43.3	29.8	44.7	46	40.1	47.2	36.3	39.2	51.2	53.5	50.1	56.1	44.7	43.8	46.4	42.3
	naycha hajmi	mm	DN100	DN100	Dn125	Dn125	Dn125	Dn125	Dn150	Dn150	Dn150	Dn150	Dn150	Dn150	Dn150	Dn200	Dn200	Dn200	Dn200
Kondensator	Fan turi		Eksenel oqimi
	Miqdori	har bir	6	6	10	10	10	10	12	12	14	16	18	18	20	20	20	24	24
	kuch	Kw / har bir	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.8	1.8	1.8	1.8	1.8	1.8	1.8
	Fan tezligi	Rpm	950	950	950	950	950	950	950	950	950	950	970	970	970	970	970	970	970
	Bitta fan havo oqimi	m²/h	17,982	17,982	17,982	17,982	17,982	17,982	17,982	17982	17982	17982	20000	20000	20000	20000	20000	20000	20000
Maks rla 1	Boshqaruv paneli 1	A	230	269	327	377	413	449	496	536	543	453	507	547	556	498	537	547	547
	Boshqaruv paneli 2										-	226	275	275	275	498	537	547	547
{{0} ni ishga tushiring Hozirgi	Boshqaruv paneli 1	A	373	406	371	413	513	543	576	609	759	637	720	753	759	717	747	753	753
	Boshqaruv paneli 2										-	441	530	530	530	717	747	753	753
Muzlamoq ayblamoq	Ckt 1	kg	94	100	89	85	85	85	90	91	104	156	165	166	198	167	167	174	202
Muzlamoq ayblamoq	Ckt 2	kg	Nod	Nod	71	85	85	85	90	91	104	69	77	83	82	167	167	174	202
O'lchov	Uzunligi	mm	3,840	3840	6200	6200	6200	6200	7380	7380	8602	10130	11310	11310	11810	11810	11810	14850	14850
	Kenglik	mm	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245
	Balandlik	mm	2501	2501	2501	2501	2501	2501	2501	2501	2501	2501	2480	2480	2480	2480	2480	2480	2480
Yuk tashish og'irligi		kg	2740	2910	4266	4609	4647	4814	5041	5150	5931	7695	8278	8364	8673	9982	10111	10799	11314
Operatsion og'irlik		kg	2888	3069	4515	4868	4912	5093	5331	5466	6062	7801	8398	8501	8810	10149	10294	10982	11520
Izohlar: 1. Sovutish shartlari: Suv harorati 12 daraja C / 7 darajasi, atrof-muhit harorati 35 daraja; Foul koeffitsienti 0,018m. Displey / KV, 85-2250000 evaporatator 2 jarayoni, 255ton va undan yuqori mashina bug'lanishi 1 jarayondir; 2. Ultra - pastcha shovqin, keng halqa harorati yoki past ring harorati pastligi, efirda EC vosita ishlatiladi; 3 4. Tantanning mahsulotlari doimiy ravishda takomillashtirilib, yangilanadi. Agar yuqoridagi jadvalda ma'lumotlar bo'lsa, biz sizni alohida-alohida xabardor qilmaymiz. Iltimos bizni kechiring.

Model		Rtag - p	85	100	125	145	155	170	190	205	225	230	255	285	310	340	375	400	410	440	460
Sig'im		Kvant	289	345	444	514	548	587	640	694	759	791	863	984	1089	1146	1281	1281	1373	1483	1582
Sig'im		Tonna	82	98	126	146	156	167	182	197	216	221	245	280	310	326	364	390	422	435	442
Sig'im		Kvant	81	99	120	140	152	165	178	198	236	225	261	292	318	347	380	425	457	474	449
Muzlamoq		R134a
Quvvatlantirish manbai		380v150hz / 3FF
Kompressor	Tur	Gorizontal semen vintli kompressor
	Boshpana	Wye - delta yopiq o'tish starteri
	Aylanma narsa		1	1	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	4
	Minut		36%	36%	18%	18%	18%	18%	18%	18%	18%	18%	12%	12.00%	12.00%	12.00%	9.00%	9.00%	9.00%	9.00%	9.00%
Evakator	Tur	Shell va trubasi (chil)
	Reyting oqimi	I/S	13.8	16.4	21.2	24.5	26.1	28	30.5	33.1	36.2	37.1	41.1	46.9	51.9	54.6	61	65.4	70.63	72.8	74.1
	Reyting WPD	kpa	36.8	43.3	35.3	47.1	47.4	40.5	47.8	36.6	42.8	38	47.5	49.1	47.8	52.8	51.4	48.7	48	39.9	38
	naycha hajmi	mm	DN100	DN100	Dn125	Dn125	Dn125	Dn125	Dn150	Dn150	Dn150	Dn150	Dn150	Dn150	Dn150	Dn150	Dn150	Dn200	Dn200	Dn200	Dn150
Kondensator	Fan turi		Eksenel oqimi
	Miqdori	har bir	6	6	10	10	10	10	12	12	12	14	14	14	16	16	18	18	24	20	28
	kuch	Kw / har bir	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.8	1.8	1.8	1.8	1.8	2.8	1.8	1.5
	Fan tezligi	Rpm	max910 Min200	max910 Min200	max910 Min200	max910 Min200	max910 Min200	max910 Min200	max910 Min200	max910 Min200	max910 Min200	max910 Min200	max910 Min200	max970 Min200	max970 Min200	max970 Min200	max970 Min200	max970 Min200	max970 Min200	max970 Min200	max910 Min200
	Bitta fan havo oqimi	m²/h	17,051	17,051	17,051	17,051	17,051	17,051	17,051	17,051	17,051	17,051	17,051	20000	20000	20000	20000	20000	23,000	20000	17,051
Maks rla 1	Boshqaruv paneli 1	A	230	269	327	377	413	449	496	536	536	543	445	493	542	542	493	533	570	537	543
	Boshqaruv paneli 2											-	226	270	270	270	493	533	570	537	543
{{0} ni ishga tushiring Hozirgi	Boshqaruv paneli 1	A	195	228	285	327	357	387	420	453	546	462	631	670	753	753	631	747	764	747	462
	Boshqaruv paneli 2											-	226	266	266	266	631	741	764	747	462
Muzlamoq ayblamoq	Ckt 1	kg	94	100	89	85	85	85	90	91	98	104	140	140	158	174	148	148	202	183	104/104
Muzlamoq ayblamoq	Ckt 2	kg			71	85	85	85	90	91	98	104	69	69	75	75	148	148	202	183	104/104
O'lchov	Uzunligi	mm	3,970	3970	6330	6330	6330	6330	7510	7510	7510	8732	9200	9200	10380	10380	11560	11560	14980	11810	17514
	Kenglik	mm	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245	2245
	Balandlik	mm	2501	2501	2501	2501	2501	2501	2501	2501	2501	2501	2501	2480	2480	2480	2480	2480	2480	2480	2480
Yuk tashish og'irligi		kg	3020	3190	4646	4989	5027	5194	5421	5530	5734	6411	7471	7691	8378	8394	9562	9712	11279	10397	12822
Operatsion og'irlik		kg	3170	3351	4895	5248	5292	5473	5711	5846	5853	6542	7577	7811	8515	8531	9713	9879	11462	10603	1308
Izohlar: 1. Sovutish shartlari: Suv harorati 12 daraja C / 7 darajasi, atrof-muhit harorati 35 daraja; Foul koeffitsienti 0,018m. Displey / KV, 85-2250000 evaporatator 2 jarayoni, 255ton va undan yuqori mashina bug'lanishi 1 jarayondir; 2. Ultra - pastcha shovqin, keng halqa harorati yoki past ring harorati pastligi, efirda EC vosita ishlatiladi; 3 4. Tantanning mahsulotlari doimiy ravishda takomillashtirilib, yangilanadi. Agar yuqoridagi jadvalda ma'lumotlar bo'lsa, biz sizni alohida-alohida xabardor qilmaymiz. Iltimos bizni kechiring.

Model		Rtag -}	125	145	155	170	190	205
Sig'im		Kvant	440	510	546	586	642	695
Sig'im		Tonna	125	145	155	167	183	198
Sig'im		Kvant	139	160	173	187	201	222
Politsiyachi		KVt / kw	3.16	3.2	3.16	3.14	3.19	3.13
Xom		KVt / kw	4.2	4.22	4.23	4.22	4.31	4.26
Muzlamoq		R134a
Quvvatlantirish manbai		380v150hz / 3FF
Kompressor	Tur	Gorizontal semen vintli kompressor
	Boshpana	Wye - delta yopiq o'tish starteri
	Aylanma narsa		2	2	2	2	2	2
	Minut		18%	18%	18%	18%	18%	18%
Evakator	Tur	Shell va trubasi (chil))
	Reyting oqimi	I/S	21	24	26	28	31	33
	Reyting WPD	kpa	41	54	47	40	50	44
	naycha hajmi	mm	Dn125	Dn125	Dn125	Dn150	Dn150	Dn150
Kondensator	Fan turi		Eksenel oqimi
	Miqdori	har bir	8	8	8	8	10	10
	kuch	Kw / har bir	1.8	1.8	1.8	1.8	1.8	1.8
	Fan tezligi	Rpm	max910 Min200	max910 Min200	max910 Min200	max910 Min200	max910 Min200	max910 Min200
	Bitta fan havo oqimi	m²/h	17,982	17,982	17,982	17,982	17,982	17,982
Maks rla 1	Boshqaruv paneli 1	A	319	369	405	441	489	528
{{0} ni ishga tushiring Hozirgi	Boshqaruv paneli 1	A	285	327	357	387	420	453
Muzlamoq ayblamoq	Ckt 1	L	6	6	7	8	8	8
Muzlamoq ayblamoq	Ckt 2	L	6	6	6	8	8	8
O'lchov	Uzunligi	mm	5,150	5150	5150	5150	6330	6330
	Kenglik	mm	2245	2245	2245	2245	2245	2245
	Balandlik	mm	2480	2480	2480	2480	2480	2480
Yuk tashish og'irligi		kg	4202	4510	4554	4721	5079	5178
Operatsion og'irlik		kg	4426	4744	4801	4982	5351	5465
Izohlar: 1. Sovutish shartlari: Suv harorati 12 daraja C / 7 darajasi, atrof-muhit harorati 35 daraja; Foul koeffitsienti 0,018m. Displey / KV, 85-2250000 evaporatator 2 jarayoni, 255ton va undan yuqori mashina bug'lanishi 1 jarayondir; 2. Ultra - pastcha shovqin, keng halqa harorati yoki past ring harorati pastligi, efirda EC vosita ishlatiladi; 3 4. Tantanning mahsulotlari doimiy ravishda takomillashtirilib, yangilanadi. Agar yuqoridagi jadvalda ma'lumotlar bo'lsa, biz sizni alohida-alohida xabardor qilmaymiz. Iltimos bizni kechiring.

Sog'lom -} Sovutish qobiliyatini, eng mos keladigan konstruktsiyalar, shunchalik moslashuvchan va eco {{{{}} {{{}} - yangi loyihalarni amalga oshirish uchun "Eko -" Sovutgichli dizayni bilan ta'minlaymiz. yoki mavjud uskunaning yangilanishi. Sizning aniq talablaringizga javob beradigan moslashtirilgan sovutish echimlari uchun professional jamoamizni professional jamoamizni egallab oling.
